CTBU

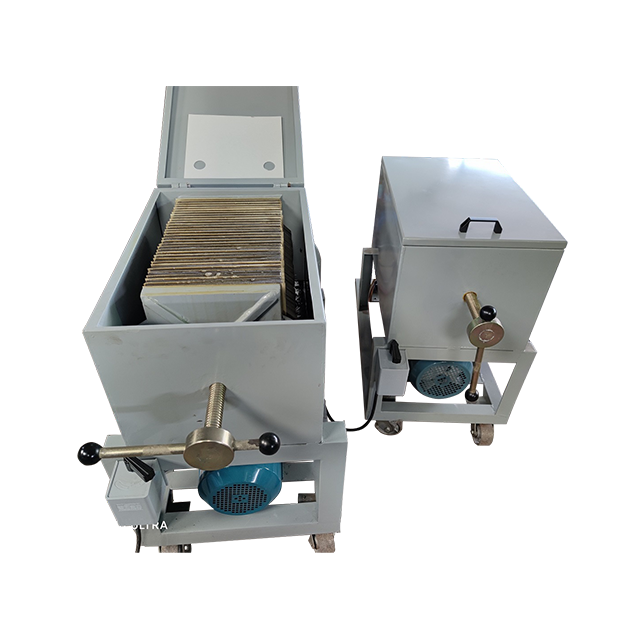

Model LY Press Plate Oil Filter Machine
Application：
Model LY Plate Press oil purification device is mainly used to purify transformer oil, turbine oil, engine oil, diesel oil, aviation hydraulic oil etc. It can remove water and particles from oil, it's made of Cast Steel or optional Stainless steel body, the machine can be as the vegetable oil purifier. The Plate Press oil filtering unit is mainly composed of filtering bed, oil pump and primary-filter. Plate Press oil purification device uses filter paper as filter medium, different filtration precisions using different filter paper.
CTBU Brand LY Plate-Press oil filtration machine is high filtration precision, simple structure, easy operation, low operation cost. It's one pressure type oil filtering machine.
Model LY Press type oil purification device is very simple, very popular. And the Particles size can achieve less than 0.3micro.
Technical Parameters:
Index name | Unit | LY-30 | LY-50 | LY-100 | LY-125 | LY-150 | LY-200 | LY-300 | |
Flow rate | Liter/h | 1800 | 3000 | 6000 | 7500 | 9000 | 12000 | 18000 | |
Working pressure | MPa | 0-0.3 | |||||||
Filtering size | ≥ ㎡ | 0.48 | 0.6 | 1.35 | 1.55 | 2 | 2.5 | 3.1 | |
Plate dimension | mm | 180*180 | 280*280 | ||||||
Pressing way | Manual | ||||||||
Ring quantity | 14 | 18 | 39 | 47 | 24 | 29 | 34 | ||
Plate quantity | 15 | 19 | 40 | 48 | 25 | 30 | 35 | ||
Power | KW | 1.1 | 2.2 | 3 | 5.5 | ||||
Inlet caliber | 1 | 1 1/4 | 2 1/2 | ||||||
Outlet caliber | 3/4 | 1 1/4 | 2 1/2 | ||||||
Dimension | L | mm | 800 | 900 1000 | 1100 | 1200 | |||
W | mm | 300 | 440 | ||||||
H | mm | 720 | 840 | 1000 | |||||
Filter paper | mm | 180*180 | 280*280 | ||||||
Weight | kg | 50 | 55 | 85 | 110 | 150 | 175 | 190 | |
Particles size | ≤ 1-3 micron | ||||||||
