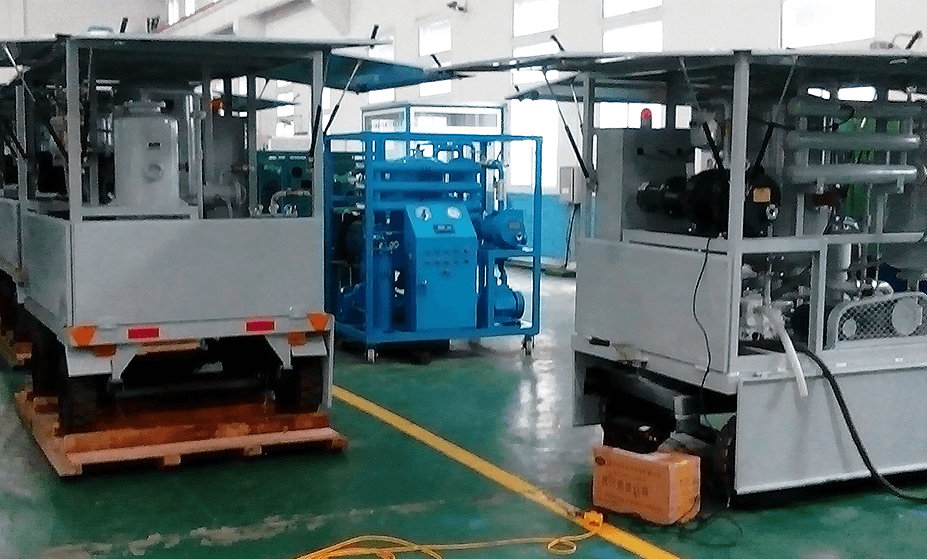

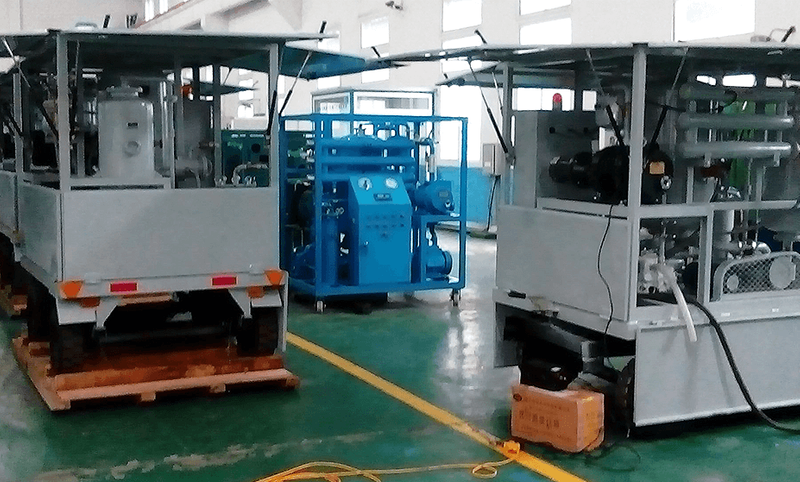

Double-Stage Trailer Mounted transformer oil filtration

The Double stage trailer mounted transformer oil filtration machine ZLS vacuum transformer oil filtering centrifuging machine is mobile Trailer type mounted on skid base with lifting hooks, it can vacuum the transformer during the transformer’s installation and maintenance at site,meanwhile, ZLS oil centrifuging filtering machine can accomplish the vacuum dehydrating and vacuum degassing of transformer oil, and to shorten the oil processing time.
Availability:
  • ZLS-T

  • CTBU

1. General

The mobile oil treatment plant is arranged on mobile trailer with metallic cover with four or two wheels in a way to be easy for access and operate of all plant part, all parts to be fixed to the trailer in a good way that it will not be affected during transportation, and The mobile trailer is design to be pulled by specified mini truck.

Model ZLS transformer vacuum oil treatment plant is being capable to re-improve the power transformer oil characteristics up to the recommended value by the transformer manufacturer or IEC-156 standard which one is higher.

The CTBU brand transformer vacuum oil treatment unit is designed to carry out the operations of filtration, dehydration and absorption of dissolved gases in a transformer for non- energized transformers either for their filling up with oil or for their Periodic maintenance.

The Oil Treatment Plant can be PLC fully automatic or manual operation.

The vacuum oil treatment plants can be also used for high voltage power transformers 400/230 KV with different power capacity varied up to 300 MVA, 230/ 66KV with different power capacity varied up to 125 MVA and 66/20 KV with different power capacity varied up to 40MVA.


Features:

The oil vacuum treatment unit can be able for use with none energized power transformer and will have:

1. Oil flow rate 5000 liter/hour or more.

2. The heating speed can be more than one step.

3. The vacuum level can be between one to four absolute m bars.

4. The minim filtration range can be not less than 2 absolute μ.

5. The dissolved moisture on the final content can be <7ppm.

6. The dissolved gas on the final content can be <0.2% by volume.

7. Can reach with the treat oil a dielectric strength not less than 70kv.


Technical Specifications:

Item

Parameter

Unit

Model ZLS

Technical Data

Flow Rate

L/H

3000

4000

6000

9000

12000

18000

Vacuity

Pa

≤133

Working Pressure

Mpa

≤0.35

Temperature Range

45-65

Power Supply


as customer required

Total Power

KW

48

78

90

120

150

230

Inlet Outlet Diameter

mm

25

32

38

40

50

65

Size

Length

mm

1600

1800

2200

2500

2800

3450

Width

mm

1250

1450

1600

1950

2150

2600

Height

mm

2000

2200

2450

2700

3000

3000

Weight

Kg

500

700

1460

1800

2400

4000

Performance

Dielectric Strength

KV

≥75KV(spherical electrodes)

Water Removal

ppm

≤5

Gas Removal

%

≤0.1

Particles Removal

µm

3micron

If you have special requirement, please contact CTBU. CTBU have different designs as per different requirements:

•  Vertical shape.

•  ”T” shape.

•  Horizontal shape.
