Introduction:

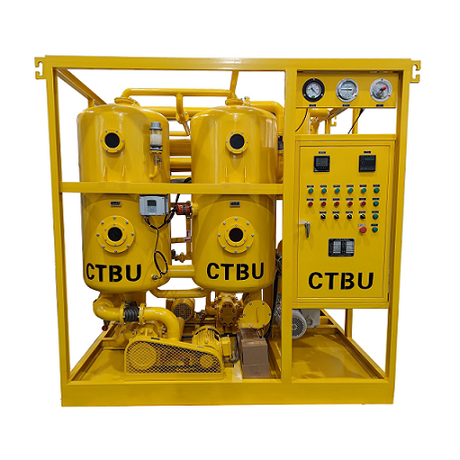

Series ZLS Two stage vacuum insulating oil purification system is specially suitable for treating HV transformer oil, super-voltage transformer oil. It can be used for filtration of more than 110KV substation work onsite. Meanwhile, it also can process switch oil, mutual inductor oil, cable oil, circuit breaker oil, capacitor oil and other insulating oil series.
CTBU Vacuum Insulating oil dryer can be used as independent vacuum source with functions of vacuum drying and vacuum filling for transformers and electric equipment.
(Options:CTBU brand ZLS vacuum drying machine also can equips used transformer oil regeneration plant, it can regenerate the unqualified old/used transformer oil, remove acidity, free carbon, sludge, oxides, pigment, other soluble oil products and discolor)
Options: Online moisture monitor, flow meter, oil regeneration system, weather proof canopy, double axles or single axle trailer, dielectric strength tester, etc.
Specifications:
Model | ZLS-30 | ZLS-50 | ZLS-75 | ZLS-100 | ZLS-150 | ZLS-200 | ZLS-250 | ZLS-300 |
Flow (liters/hour) | 1800 | 3000 | 4500 | 6000 | 9000 | 12000 | 15000 | 18000 |
Vacuum degree | -0.08~-0.099 Mpa |
Working pressure | ≤ 0.4 Mpa |
Ultimate vacuum | ≤ 5 Pa |
Temperature range | 20-80℃ |
Breakdown voltage | ≥ 70KV |
Water content | ≤ 5ppm |
Gas content | ≤ 0.1% |
Filtering rate | ≥ 99.5% |
Oil particle size | ≤3micron |
Power supply | 220V/380V/400V/415V/440V/460V/480V/575V(±10%), 50/60Hz, 3Phase |
Working noise | 65 dB |
Heating power (kw) | 30 | 36 | 60 | 72 | 120 | 150 | 180 | 215 |
Total power (kw) | 35 | 42 | 66 | 80 | 133 | 165 | 195 | 230 |
Inlet/outlet(mm) | 32 | 32 | 44 | 44 | 50 | 55 | 60 | 65 |
Weight (kg) | 600 | 700 | 800 | 900 | 1100 | 1300 | 1550 | 1800 |
Dimension (mm) | L | 1600 | 1600 | 1700 | 1850 | 1900 | 2000 | 2100 | 2200 |
W | 1500 | 1550 | 1650 | 1750 | 1800 | 1850 | 1900 | 2000 |
H | 1600 | 1600 | 1700 | 1800 | 1850 | 1850 | 1900 | 2000 |
If you have special requirement, please contact CTBU. CTBU have different designs as per different requirements:
• Vertical shape.
• "T" shape.
• Horizontal shape.
